用处与介简/Brief Introduction：

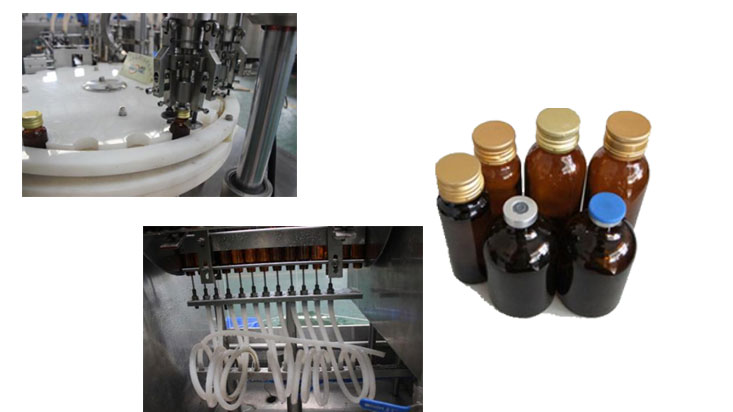

本制作线更适合30ML以下服用液的分装制作，由供瓶机、滚筒式洗瓶机、线路式分装轧（旋）盖机、落地标贴机等机械设备分解成，可全定时完成理瓶、洗瓶、分装、上盖、旋（轧）盖、标贴等道工序。基本于药业有限公司、物品、热的的各式液货品的分装协作制作。本制作线完成符合国家GMP特殊要求。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特征 /Characteristic：

◆本身材料为304304不锈钢材质，分装一部分采316L304不锈钢材质，符合要求GMP原则。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可融入多年纪分娩。can be situable for several bottle specs.◆加载固定，躁声小，灌装线高精度 。Stable running,low noise,precise filling.◆破瓶率低，产品完成率高，用电量少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整只制作线可单机手机游戏把控好和连锁品牌把控好。The whole line can single machine control or interlock control.

科技叁数/Main Technical Parameters：

不适用技术参数Filling Volume	30-150ML
灌装生产线头数Productivity	减速4头    &nbs✤p;    &𒆙nbsp;    公路8头 4 at low speed         &nb🗹sp;   high speed 8
生产销售力	低挡30-50瓶/分     高速公路70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装生产线精确度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
外接电源Power Supply	220V/50Hz
公率Power Supply	2.5kw
生產线总长Dimension	7500*1000*1700MM
