应用与百科：/Purpose and introduction

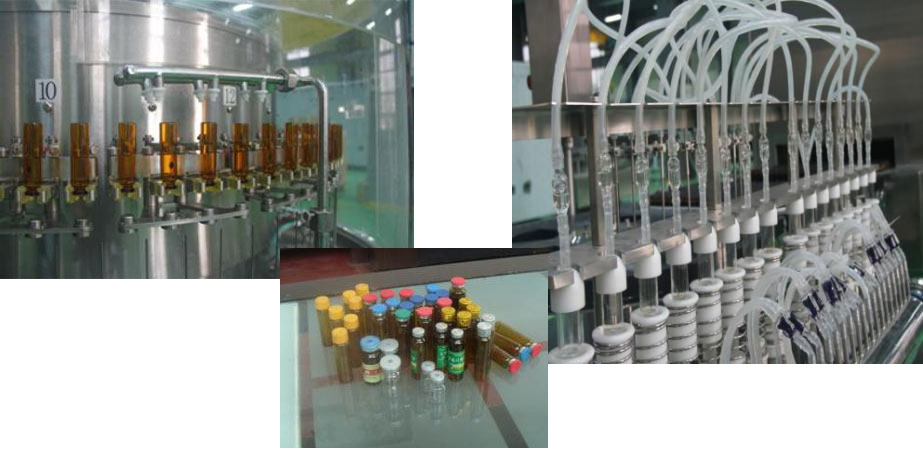

内服液洗烘灌轧协同性线由开式多普勒彩超波洗瓶机、地下隧道式暧风 无限循环杀菌烘干箱箱、内服液罐装轧盖机等组合成，时候于 5-30ml 等多种规 格内服液瓶的生育。可达到对处方药生育中安瓿瓶淋水、多普勒彩超波清理、冲水、充 气、烘干箱杀菌、冷去、罐装、轧盖等工艺技术环节的协同性自动运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征 :/characteristic

◆洗瓶机所采用机器手夹瓶，适用人群四种型号的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶运用水蒸汽喷针往复运动定位加上原则，擦拭特效好，厉行节约再生能源。并包括针架防发抖保护装置，从而提高喷针加上水瓶座的精确度度，变少断针迹象有；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体雾气导压管、喷针是完全独立自主分着，杜绝了交叠破坏，达到GMP技术规范需求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前加装有抗震块，有保护好丝杠，增多碎瓶用处Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶应用全局原装进口此次带，联系拨块气流输送服食液，正常运行不稳安全可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱按照红外线预铜管，不锈钢材质的预铜管三层预热温暖不均性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机可选装配工业陶瓷泵、铝合金泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖效果。Pieces filling without bottle filling, no bottle no rolling function.◆整线用PLC总把控好、变頻器、手触屏把控好技术应用，启动保持稳定靠普。手触屏可屏幕上展现各电脑单机的启动形态，各把控好点的压力、气压表、传热系数、摄氏度等屏幕上展现，各电开关形态和电脑系统设备故障屏幕上展现，电脑系统设备故障自我发展判断和电脑系统设备故障研究及祛除技巧。使所有生孩子的过程提升电脑自动化设备把控好，联线还具有三机电气自动化平横安装，维持生孩子义均靠普。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.按照其买家的所需，还可供配选：According to the needs of customers, but also available for selection:◆西门子操作系统、德力西、三菱数控操作系统、台达等公司的控制操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负压、水溫及超声波波力度、玦尘水粒子、风力在线播放论文检测、警告、记录卡、缩印设计。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室防晒隔离霜器程序。Mixer ORABS, CRABS, aseptic isolator system.

技艺参数指标：technical parameters

适于规模Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装高精度Filling accuracy(%)	≤ ± 2.5
罐装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
