应用领域与概述/Brief Introduction：

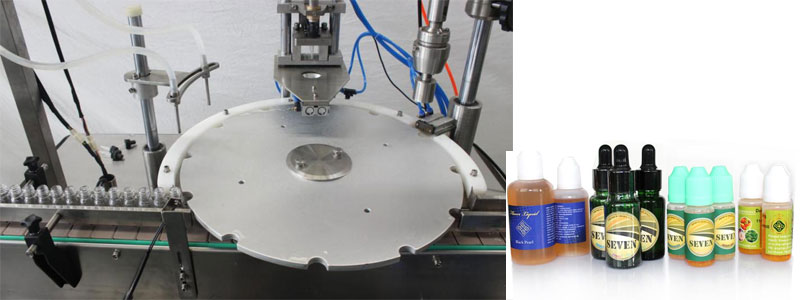

该机适于于2-30ML种种布料材质的长方形扁形可塑料或夹丝塑料瓶子的眼麻醉药装灌.该机由高计算精度轴承单位精度等级单位给予精度等级等分盘位置wifi定位上塞上盖;高访问速度度轴承单位机械传动链给予旋盖头的启闭;恒发动机功率旋盖;良好运动泵计量校准检验装灌;触模屏操纵.无瓶不装灌,没有加内塞,外盖.具位置wifi定位精准度,机械传动链稳定性,守护瓶塞,计量校准检验准.实际操作容易等优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特性/Characteristic：

◆微线上更改、装量正确、方法便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机转数可做好无级变速变频柜调速器。the mainframe running speed is stepless frequency conversion.◆生产制造量半自动参考值操纵。the product quantity can be controlled. ◆多种不同错误码显示信息基本功能(如低空气压力。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自己熄火功能性，对某个正轨展现间断无包装、无内塞现状可自己熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

高技术性能指标/Main Technical Parameters：

常用型号规格Filling Volume	2-30ml
出产力Productivity	30-60瓶/分  70-100瓶/分3ꦑ0-60bottles/min    70-100bottles/min
灌装生产线计算精度Filling Precision	≤±1%
电源模块 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
电脑自动上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
最大功率 Power	2.0 kw
工具毛重Weight	550 kg
外观图片尺寸Dimension	1800*1000*1500mm
