适用范围与简绍/Brief introduction：

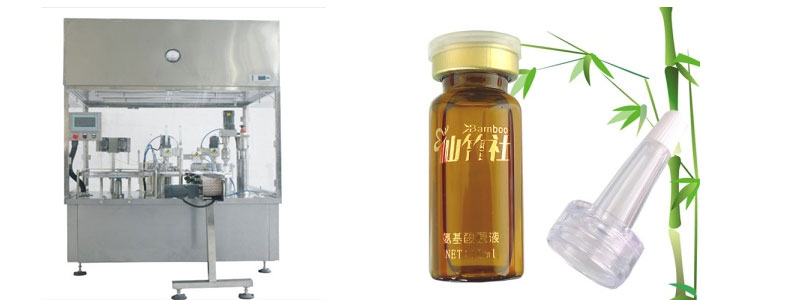

该机是在获批和吸附其他国家领先方法的根本上，我来单位人工控制研发部的是一款的专业针对性西林瓶的包装、上塞、旋（轧）盖机。该机主要采用欧美全进品高表面粗糙度开敞式凸轮机构度数流水线工器，表面粗糙度较高，运作正规，动用保修期长。该度数器的结构十分简单，经常动用不要修补。机器重点应用在各种各样的小含水量液的分装、压塞及旋（轧）盖，如复方精油、注塑剂等。诸多用在食品厂、制作药品、热该行业及科学研究方向。这手机既可单机游戏出产，又可与洗瓶机、晾干机等设施形成联动性出产线。是完全契合政府GMP规定。机器可不可以结合客人规定提升等级机电设置。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

特性/Characteristic:：

◆人与机器接口快速设置、操控直观性有利、PLC保持，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆交流变频操控、生产销售时间同样缓解、自行计算。Frequency control, the production rate be adjusted automatically count  ◆主动停止设备运转作用，无瓶不灌装线。No bottle no filling.◆圆轮精准定位式灌装线，稳固正规。Disc positioning filling, stable and reliable.◆高操作精度气缸度数计操作，准确定位*。High-precision cam meter control, precise positioning.◆用SUS304及316L304不绣钢打造，仍然令人满意GMP耍求。SUS304 and 316L stainless steel, full compliance with GMP requirements.

系统参数表/ technical parameters：

装量空间Filling volume	5-50ml
装量偏差loading error	≤ ±1%
旋（轧）盖符合标准率 Rotation (rolling) Cover pass rate:	≥99%
制作学习能力Production capacity	30-🃏60瓶/分 钟  减速 70-100瓶/分 钟     公路 30-60 bottles / min  70-100 bottles / minu💫te (high speed)
压塞率Tamponade rate	≥99%
开关电源 Power	380V/50Hz
马力Power	2.0 kw
机子净重量Net weight	600 kg
外表尺码 Dimension	2000*1000*1500mm
