应用与简价：Purpose and introduction

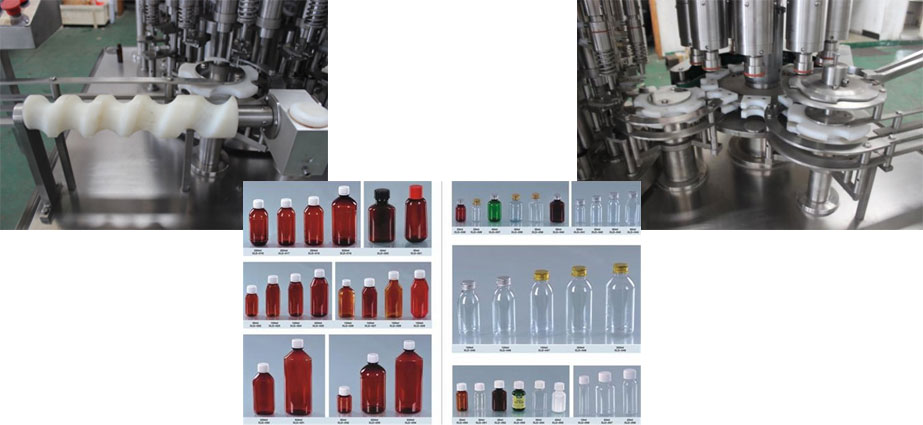

机器适用性于对30-500ML一系列波璃瓶、PVC瓶的灌装生產线生產线塑封。通过往来账往来式火塞做出灌装生產线生產线，电磁感应自由振荡送盖，都需要轧盖(合金材料式)或旋盖(PVC盖)塑封，都需要和左右侧的生產工步机器接入分解成生產线，显然都需要选用百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

共同点：characteristic

装量最准，杜尽渗漏。缺瓶不分装。 变频柜变速。 主动权彰显运算功用。 电脑整机均按GMP需要开发。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

枝术技术指标/technical parameters：

型号 model	NQGX30-500
可用于品种Cutting dimension	30-500ml
原产程度Production capacity	80-200瓶/分（罐/分钟左右）80-200 bottles/min (cans/min)
装罐精确度 Filling accuracy	≤±1%
外接电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
设备重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
