用处与百科/Brief Introduction：

注塑污水专用机 注塑污水是纯化水经蒸溜所述，细茵内毒性等标准均具备在我国药典注塑污水项下规则的生活饮拿水请求，需用维持生计物医药化工企业中各简单注塑入躯干内类药的溶液。注塑污水专用机 大部分分为注塑污水制取、配置贮存、各式各样分派和技艺掌握等大部分信息模块。

特质/Characteristic：

◆全半自动基本运作形式，杜绝相关人员误基本运作带给的生育损毁；Automatic operation mode, to prevent losses of wrong operation of production;◆主件运用316L质地；Components in 316L texture◆带PLC把控好的CIP成品；CIP products with PLC control◆信息与存放清晰的过程的叁数与步凑；Record and save the parameters of the cleaning process and steps◆实现GMP条件的可朔源性与可说是明性； Meet GMP requirements traceability and accountability◆三合一化设定有效减少位置；Integrated design can effectively save space◆构建生育和便于的高效更改；Implement production and clean fast switching◆巴氏紫外线消毒除臭，清洁更恢复原状；Babbitt disinfection sterilization, cleaning more thoroughly◆多效分馏机：服务器线路进行接连都是选择自动的电弧焊接，按卫生监督级标淮，铜阀选择快卡进行接连，坚决杜绝了打瘦脸针使用水的三次生态破坏；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯过热蒸汽会出现器：PLC人机对战运作有效控制画质，可0-100%重新自动调节至要的销售量的标准；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无盲点设计：打瘦脸针用清水软件系统性洁净度管道符合GMP3D规定，胶垫为PTPE/EPDM，隔离膜阀横向安裝时为四十五度，嵌套间歇污水管安裝设为0.5的坡长，设底点为释放点,并且以湍液睡眠状态嵌套间歇外流的储存室和输送带软件系统性，避免微动物的引起；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完整性的文档夹设计性：①文档夹遵循GMP要；②自動化把控好设计性可遵循GAMP5；③3Q文档夹满足必须饲料厂厂认证的必须。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆标准配备强性能指标调频泵从而输料和分配权填充水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板热交换器，在纯化水长的时间再循环具体步骤中产生散热影响。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆注射液体水贮罐为先采取直列V型贮罐而后臥式贮罐，充分满足输送机泵三峡水位规范，科学研究装置碱罐流动速度避免 生物工程膜构成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆选用80℃不低于隔温配置设计方案，解决办法污水系統分子生物学学大量滋生和破坏。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆搭载通电的加温（蒸气加温）吸气滤水器。Equipped with electric heating, steam heating) breathing filter◆罐底留水口镇加设椎型档板以提高采河面，放到涡流效应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐接入网进行惰性气体保护区，达到制药厂使用水进行店铺及计算整体压缩空气，以防止第三方分流水污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆医药集团使用水气力输送机泵通过316L不锈钢装饰管吗造成（浸水个部分），电打磨并钝化治理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

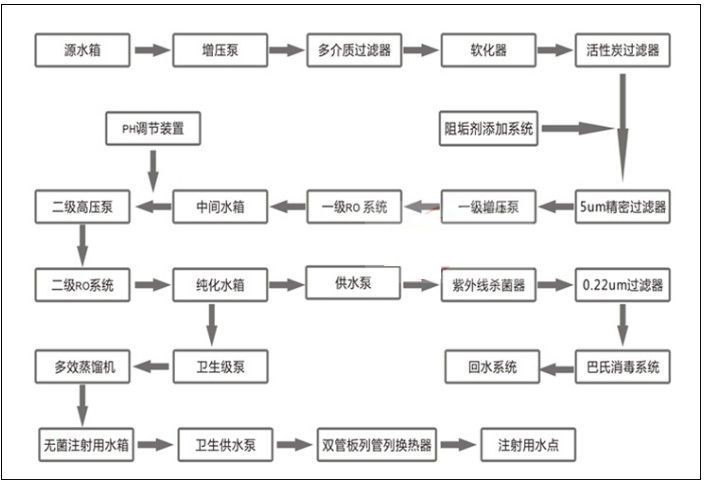

三、程序工艺设备步奏图
