种类与筒介/Brief Introduction：

这个机器用层次性三通管装灌线生产线阀，使用做水剂和膏霜类產品的装灌线生产线，特殊对高消费黏性货物（如浓酱、辣子酱、番茄酱、种衣剂、微乳剂、浮动剂等）的效率较好很大，且表面粗糙值高。这个机器用PLC可源程序掌握，并配65英寸触屏屏人与机器画面整体，进行自功进瓶，自功装灌线生产线，自功出瓶，机械，汽动元安全装置均用国.际品脾，有效为了确保了好品质的线质量和男人持久增强的功能。本机械框架简略，进行操作快捷，是国内的梦想的针对于高消费黏性货物的装灌线生产线机械。这个机器配齐了严防滴漏问题问题与金属拉丝工艺的装灌线生产线闷头，有效为了确保装灌线生产线完后无滴漏问题问题，无金属拉丝工艺。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特性/Characteristic：

◆操纵设备——用到三菱PLCPLC操纵设备，装灌使用量随即调节。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆控制画面——6英尺彩屏手触式控制画面，可以直观简单的、健康安全信得过Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆实用的基本功能改良——上下料有防滴漏问题裝置，可随着物料清单优点遵循下潜装灌实用的基本功能。（此实用的基本功能需要选则）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电气组件——均使用亚太有名的品牌标志，保证环保设备的安全保障可靠的、精确性性好；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆自动化控制零件——系统控制零件均适用优异304不锈钢材质质作,知悉需要学习货物可不可以适用316L另算钱用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆计数器器检侧——城市热力图计数器器，对工做产出量主观造成。Counting test, real-time, intuitive reflect the yield of work.◆分装论文检测——无瓶不灌、瓶数不过不灌Bottle filling test - no bottle no filling, not enough◆定期检查状况——该设备不符合GMP的标准，可轻松愉快拆装工作、洁净定期检查。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆修改标准型号——修改分装标准型号时，只需要十分简单修改，轻松愉快解决。Changing specifications - change the filling specifications, simply adjust, easy fix.◆节能低能耗安装——安装了节能低能耗框架的，使机的操作流程条件比较保洁环保节能。（此节能低能耗安装能否选择装配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

技术水平基本参数/technical parameters：

装灌头数The number of filling head	8😼头（自选4、6、8、10、12分装头）8 head (optional 4, 6, 8, 10, 12 filling head)

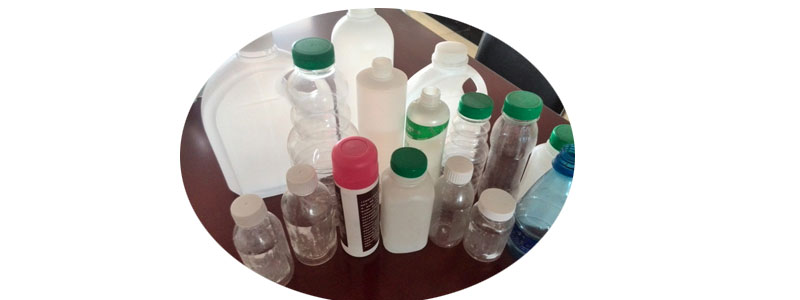

适宜瓶径 Applicable bottles Drive	Ф33-Ф100 mm
计量校准要求measure precision	±1%
罐装电容量Canned capacity	150-1000ml
制造本事Production Capacity	2400-4000瓶/半小时2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
